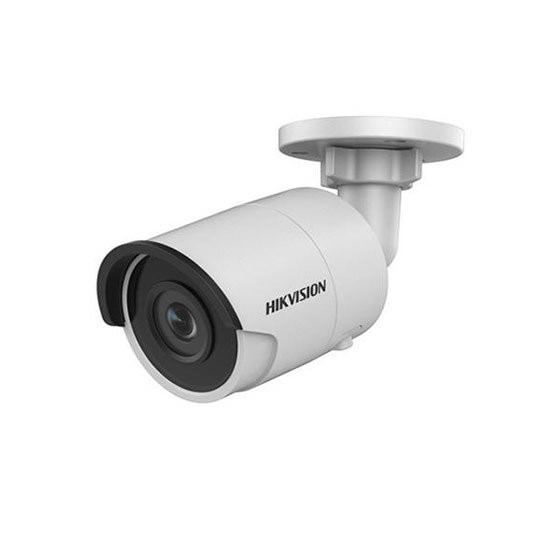

| Camera |
| Image Sensor: |
| |
1/2.9" Progressive Scan CMOS |
| Signal System: |
| |
PAL/NTSC |
| Min. Illumination: |
| |
Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Shutter time: |
| |
1/3 s to 1/100,000 s |
| Slow shutter: |
| |
Support |
| Lens: |
| |
2.8 mm, horizontal FOV: 97°, vertical FOV: 63°, diagonal FOV: 120°
4 mm, horizontal FOV: 78°, vertical FOV: 50°, diagonal FOV: 97°
6 mm, horizontal FOV: 60°, vertical FOV: 39°, diagonal FOV: 75°
8 mm, horizontal FOV: 39.5°, vertical FOV: 26°, diagonal FOV: 48° |
| Lens Mount: |
| |
M12 |
| Adjustment Range: |
| |
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Day& Night: |
| |
IR cut filter with auto switch |
| Wide Dynamic Range: |
| |
120 dB |
| Digital noise reduction: |
| |
3D DNR |
| Compression Standard |
| Video Compression: |
| |
H.265+/H.265/H.264+/H.264/MJPEG |
| Video bit rate: |
| |
32Kbps~16Mbps |
| Triple Streams: |
| |
Yes |
| Image |
| Max. Image Resolution: |
| |
3072 x 2048 |
| Frame Rate: |
| |
50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub Stream: |
| |
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream: |
| |
50Hz: 25fps(1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps(1280 × 720, 640 × 360, 352 × 240) |
| Image Enhancement: |
| |
BLC/3D DNR |
| Image Settings: |
| |
Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| Target Cropping: |
| |
No |
| ROI: |
| |
1 fixed region for main stream and sub-stream |
| Day/Night Switch: |
| |
Auto/Schedule |
| Network |
| Network Storage: |
| |
microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger: |
| |
Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols: |
| |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour |
| General Function: |
| |
One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering |
| System Compatibility: |
| |
ONVIF (Profile S, Profile G),ISAPI |
| Interface |
| Communication Interface: |
| |
1 RJ45 10M / 100M Ethernet interface |
| On-board storage: |
| |
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button: |
| |
Yes |
| Smart Feature-set |
| Behavior Analysis: |
| |
Line crossing detection, intrusion detection |
| Line Crossing Detection: |
| |
Cross a pre-defined virtual line |
| Intrusion Detection: |
| |
Enter and loiter in a pre-defined virtual region |
| Recognition: |
| |
Face Detection |
| General |
| Operating Conditions: |
| |
-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing) |
| Power Supply: |
| |
12 VDC ± 25%, PoE (802.3af Class3) |
| Power Consumption: |
| |
12 VDC, 0.4 A, max. 6W
PoE: (802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7.5W |
| Weather Proof: |
| |
IP67 |
| IR Range: |
| |
Up to 30m |
| Dimensions: |
| |
Camera: Φ 70 mm × 155 mm (Φ 2.8" × 6.1")
Package: 216 × 121 × 118 mm (8.5" × 4.8" × 4.7") |
| Weight: |
| |
Camera: approx. 410 g (0.9 lb.) |
